Industrial RO Membrane Manufacturing
Industrial RO Membrane Production Equipment
WECOME supplies industrial RO membrane making machines for spiral-wound element production, including material preparation, semi-automatic rolling, trimming, vacuum integrity testing and FRP winding. Equipment is selected against the target 2540, 4021, 4040 or 8040 element design, required output and approved factory process.
4040 / 8040 Programs · Format-based configuration
Process Integration · Preparation through testing
Factory Support · Layout, installation and training
Sheet & Spacer CuttingLeaf preparation and folding
Carrier Cutting & WeldingPermeate carrier preparation
Semi-Automatic Rolling4040 and 8040 element rolling
Element TrimmingControlled end-face finishing
Vacuum Integrity TestingElement leak-screening support
FRP Fiberglass WindingIndustrial element outer reinforcement

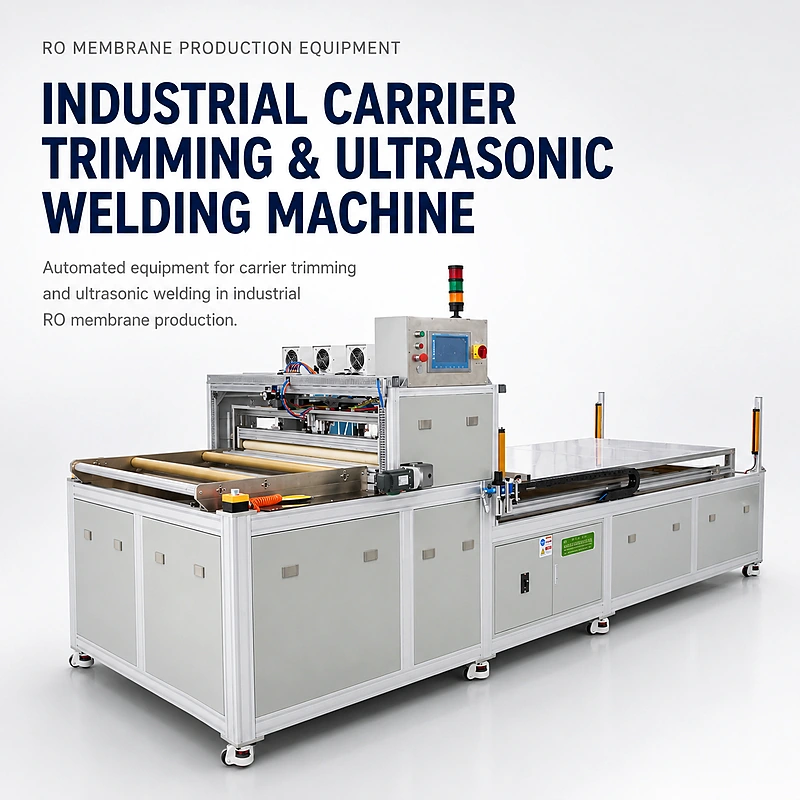

An industrial RO membrane carrier ultrasonic welding machine — trims the permeate carrier (tricot) and ultrasonically welds it into leak-tight......
An industrial RO membrane sheet and spacer cutting machine — cross-cuts membrane sheet and feed spacer to size, then folds......
An industrial RO membrane rolling machine for producing 2540, 4021, 4040 and 8040 spiral-wound elements at scale — winds leaves,......
A heavy-duty industrial RO membrane trimming machine — trims both ends of cured 4040 and 8040 elements for clean, square......

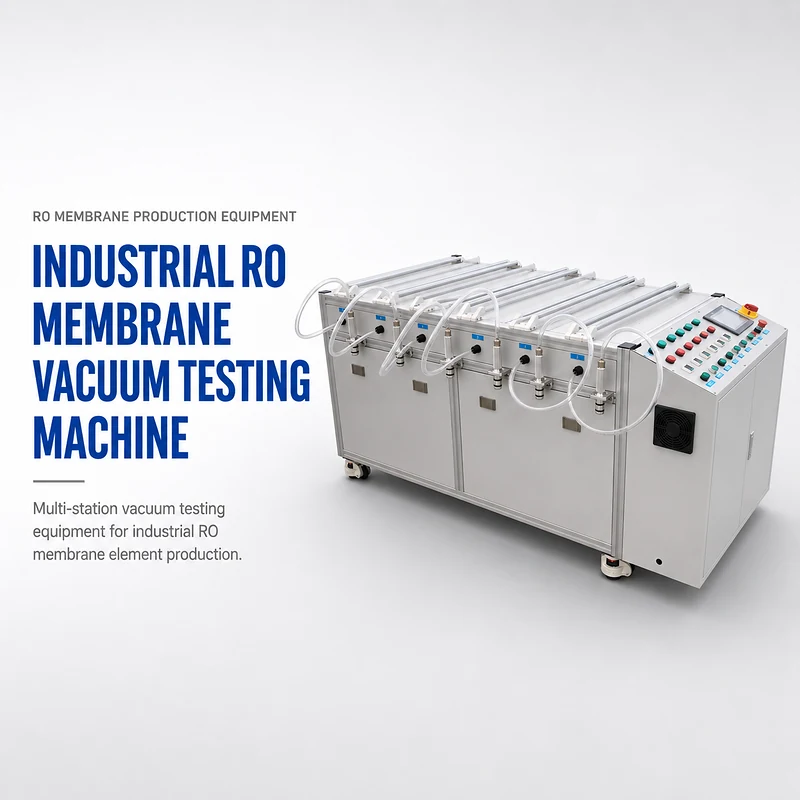

The industrial vacuum tightness testing machine for reverse osmosis membrane element is a device specially used to test the air......
An automatic RO membrane FRP winding machine — winds fiberglass roving and resin into the rigid outer shell of 4040......
Process Coverage
Equipment Across the Industrial RO Element Workflow
Industrial membrane equipment should be selected as a coordinated process. The element drawing, materials, adhesive system, output target and inspection plan determine which stations are required.
| Production stage | Equipment function | Key confirmation points | Relevant equipment |
|---|---|---|---|
| Material preparation | Cut and prepare membrane sheet, feed spacer and permeate carrier before rolling. | Leaf dimensions, cut accuracy, folding method, weld path, roll width and material handling. | Sheet & spacer cutting Carrier cutting & welding |
| Element rolling | Coordinate tube loading, leaf sequence, adhesive application, winding tension and roll formation. | 2540/4021/4040/8040 format, layer count, finished diameter, adhesive path, mandrel and operator workflow. | Industrial semi-automatic rolling machine |
| Finishing | Trim element ends and apply fiberglass reinforcement where required by the approved design. | Cut position, end-face quality, element length, FRP recipe, winding tension and curing process. | Industrial trimming machine FRP winding machine |
| Integrity control | Support vacuum-based screening before hydraulic performance testing and release. | Test fixture, sealing interface, vacuum level, hold time, acceptance criteria and traceability. | Industrial vacuum testing machine |
Machine capability does not by itself guarantee membrane flow, salt rejection or finished-element compliance. Final results depend on the complete design, materials, process controls and validated testing method.
Project Definition
How to Specify Industrial RO Membrane Equipment
Begin with the element construction and required factory output. A machine quotation is more accurate when it is based on controlled drawings, real materials and agreed acceptance criteria rather than a generic equipment name.
For a multi-station project, WECOME can review the workflow from material preparation through rolling, finishing and integrity testing. The 4040 and 8040 industrial RO membrane manufacturing solution shows how those stations connect to the material structure and quality checks.
01 · ELEMENT
Formats and drawings
Provide target sizes, tube and leaf drawings, layer count, finished diameter and construction details.
02 · OUTPUT
Capacity target
State pieces per shift, working hours, operators, product mix and expected changeover frequency.
03 · MATERIALS
Process inputs
Identify membrane, spacer, carrier, tube, adhesive, tape and FRP specifications used in production.
04 · FACTORY
Layout and utilities
Share available floor space, electrical supply, air, ventilation, environmental and handling constraints.
05 · CONTROL
FAT criteria
Define sample materials, trial element, cycle reference, dimensional checks and acceptance records.
06 · DELIVERY
Training and support
Confirm installation scope, operator training, documentation, spare parts and post-delivery support.
Quick Answers
Industrial RO Membrane Equipment FAQs
Direct answers for factories comparing 4040 and 8040 membrane production equipment.
What machines are used to manufacture industrial RO membrane elements?
A typical workflow may include membrane sheet and feed-spacer preparation, permeate-carrier cutting and welding, semi-automatic membrane rolling, element trimming, FRP fiberglass winding and vacuum integrity testing. The required stations depend on the approved element design and the work completed by operators or existing equipment.
Which equipment is used for 4040 and 8040 RO membrane production?
4040 and 8040 programs commonly require industrial-format material preparation, rolling, trimming and testing equipment. FRP winding is added where the approved outer construction requires fiberglass reinforcement. Tooling and machine configuration must be confirmed from the exact tube, leaf stack and finished-element dimensions.
What is the difference between household and industrial membrane rolling machines?
Industrial rolling equipment handles different tube geometry, leaf dimensions, layer counts, adhesive paths, finished diameters and material loads. Do not select a machine only from the words automatic or semi-automatic; compare the complete element recipe, output target, tooling and operator tasks.
Can these machines form a complete industrial RO membrane production line?
Yes. The listed stations can be planned as a coordinated industrial RO membrane production workflow. A complete line proposal still requires confirmation of which preparation, curing, handling, hydraulic testing and packaging operations are included or supplied separately.
Does an industrial RO membrane making machine guarantee element performance?
No. Controlled equipment supports repeatability, but finished flow, salt rejection, pressure drop and integrity depend on membrane chemistry, material compatibility, leaf construction, adhesive cure, process control and validated hydraulic testing.
What information is required for an accurate equipment quotation?
Send element drawings, target formats, output per shift, tube and leaf data, material and adhesive specifications, utilities, available layout, automation expectations and FAT acceptance criteria.
Plan the Equipment Around Your Element
Share your 4040 or 8040 element drawing, material structure, production target and factory conditions. WECOME will review the required stations and the information needed for a technical proposal.
