RO Membrane Materials for Seawater Desalination
Seawater reverse osmosis is the most demanding RO duty — high salinity, high pressure and a long service life. WECOME supplies the membrane materials, components and production equipment that SWRO element manufacturers rely on to build robust elements.
High Salinity Changes Every Layer
Seawater reverse osmosis runs at far higher salinity and pressure than brackish or tap water. That changes the membrane sheet, feed spacer, adhesive, outer wrap and the way the element is manufactured and tested.
High osmotic pressure
~35,000 ppm TDS means high feed pressure to push permeate through.
High rejection needed
The membrane must hold back salt at very high concentration.
Mechanical load
Tube, seals, end caps and FRP wrap must take the pressure.
Durability
Corrosion-resistant materials for a long, stable service life.

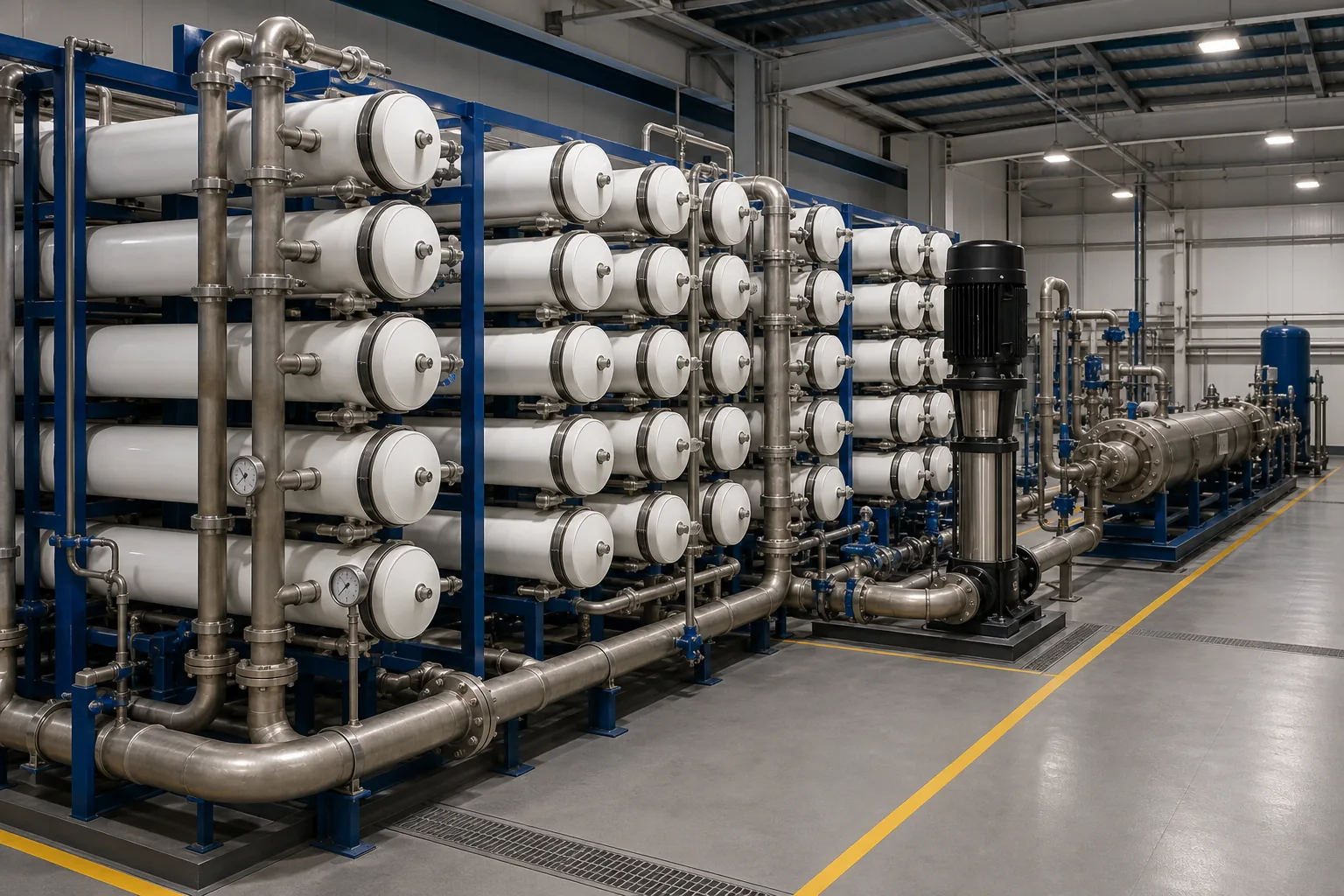

Where SWRO Sits in Desalination
An SWRO system follows seawater intake and pre-treatment; the element is specified from salinity, temperature and recovery targets, not the other way round.
- Intake & pre-treatmentScreening, filtration and dosing protect the membrane from fouling.
- Set rejection & recoverySalinity and target permeate define membrane grade and pressure.
- SWRO stageHigh-pressure RO removes the bulk of the salt.
- Specify the elementMembrane, spacer, tube, glue and FRP wrap chosen for the duty.
- Production & QCConsistent rolling plus pressure / leak testing on every element.
Different Seawater Projects, Different Builds
Seawater reverse osmosis spans large coastal plants to compact marine units — each points to a different element construction.

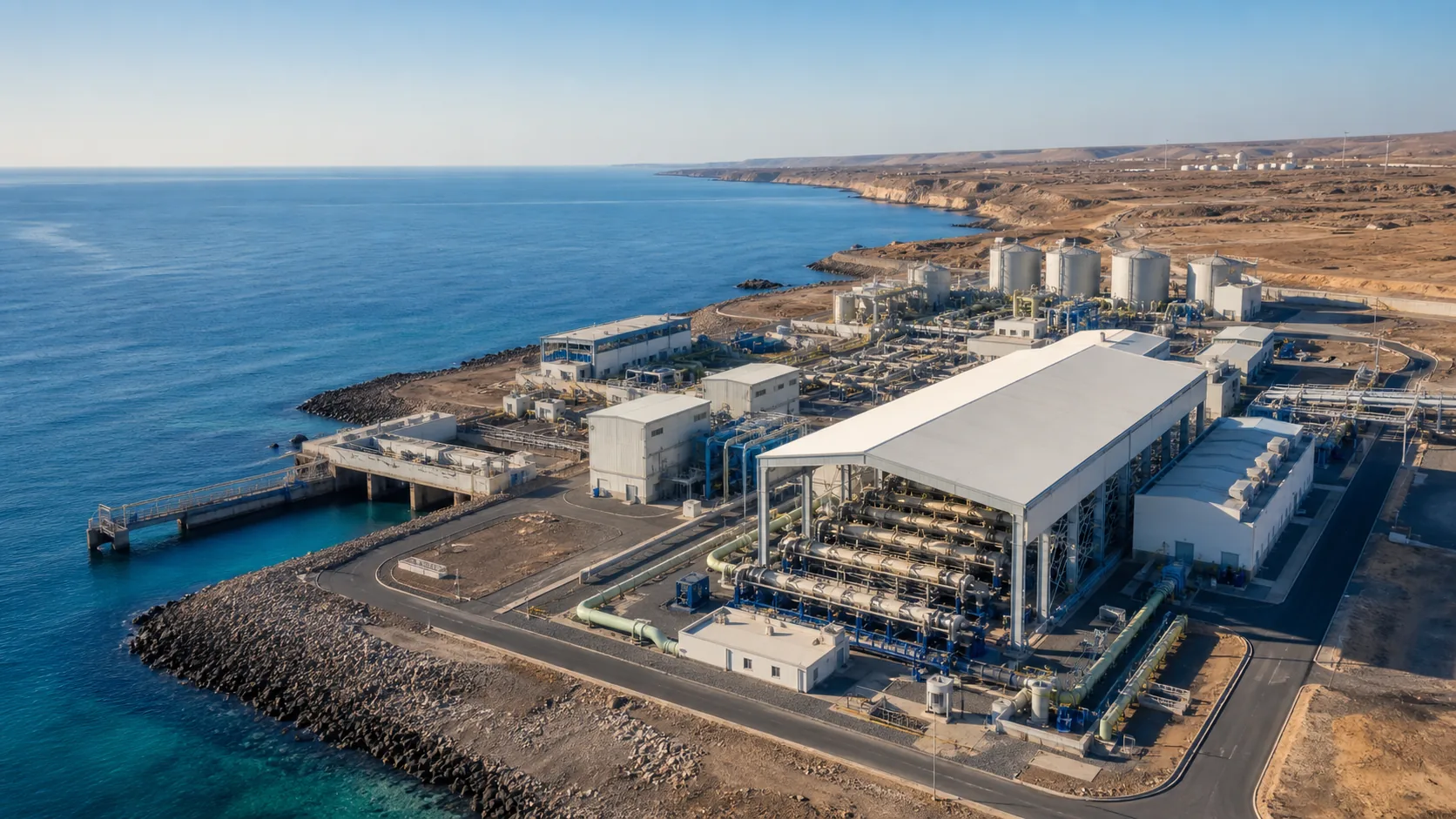

Large Coastal SWRO
High-volume municipal/industrial desalination — 8040 elements, high-rejection membrane, robust build.
RO Desalination Plants
Mid-scale desalination needing dependable rejection and durable components under pressure.
Compact / Marine SWRO
Smaller watermakers and offshore units — compact formats, vibration and corrosion exposure. See marine & offshore.
How Seawater Duty Shapes Each Material
Seawater reverse osmosis shows up in every part of the element. Each material is chosen for high salinity and pressure, and they only perform when matched together.
Membrane Sheet
Seawater needs a high-rejection seawater RO membrane. Our core flat sheet covers low-pressure/brackish grades — for seawater grade, talk to us.
Permeate Carrier
The permeate carrier must carry product water with low back-pressure under high operating pressure.

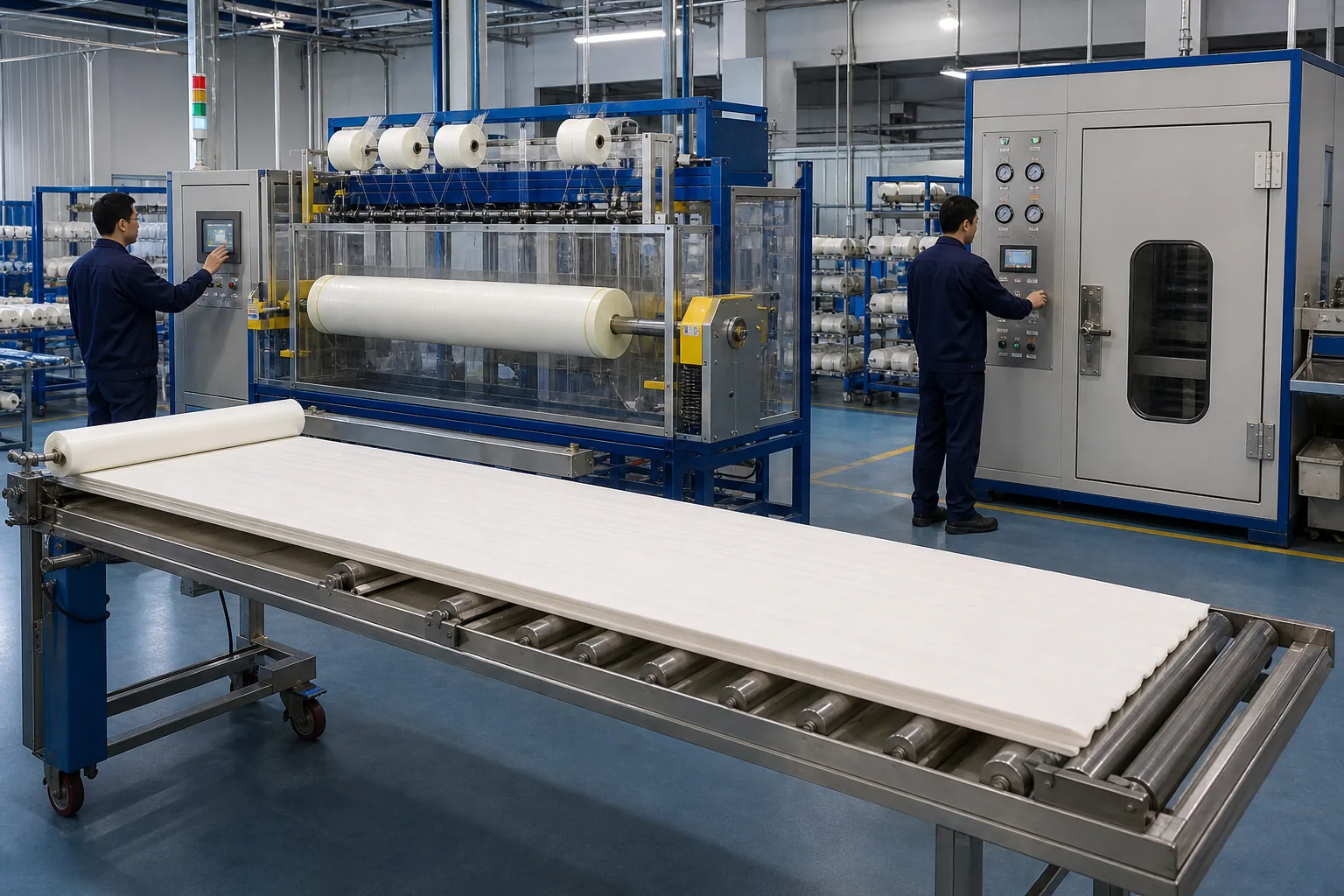

8040 Production, Built to Hold Pressure
Seawater elements run at the highest pressures, so production consistency and testing are non-negotiable — and we supply the machines for it.
- Incoming material checks — verify membrane, spacer and components.
- Controlled rolling — stable winding tension for 8040 elements.
- FRP outer wrap — strong, even fiberglass shell.
- Pressure & leak testing — verify integrity before shipment.
Specify Once, Build It the Same Every Time
Seawater programs start from a documented element specification and clear acceptance criteria, held across every run.
- Documented element spec — membrane, spacer, tube, glue, FRP and size in writing.
- Acceptance criteria up front — rejection, flow and leak limits agreed.
- 8040 (and 4040) formats — matched to your array and recovery.
- Traceable construction — consistent parts that are easy to support.
Seawater Element — Typical Build
| Feed water | Seawater, ~35,000 ppm TDS (pre-treated) |
| Membrane grade | High-rejection seawater (SWRO) |
| Element size | 8040 (also 4040) |
| Operating pressure | High |
| Key build notes | Robust central tube & seals; strong FRP outer wrap |
| We supply | Components & production machines (membrane: ask for SWRO grade) |

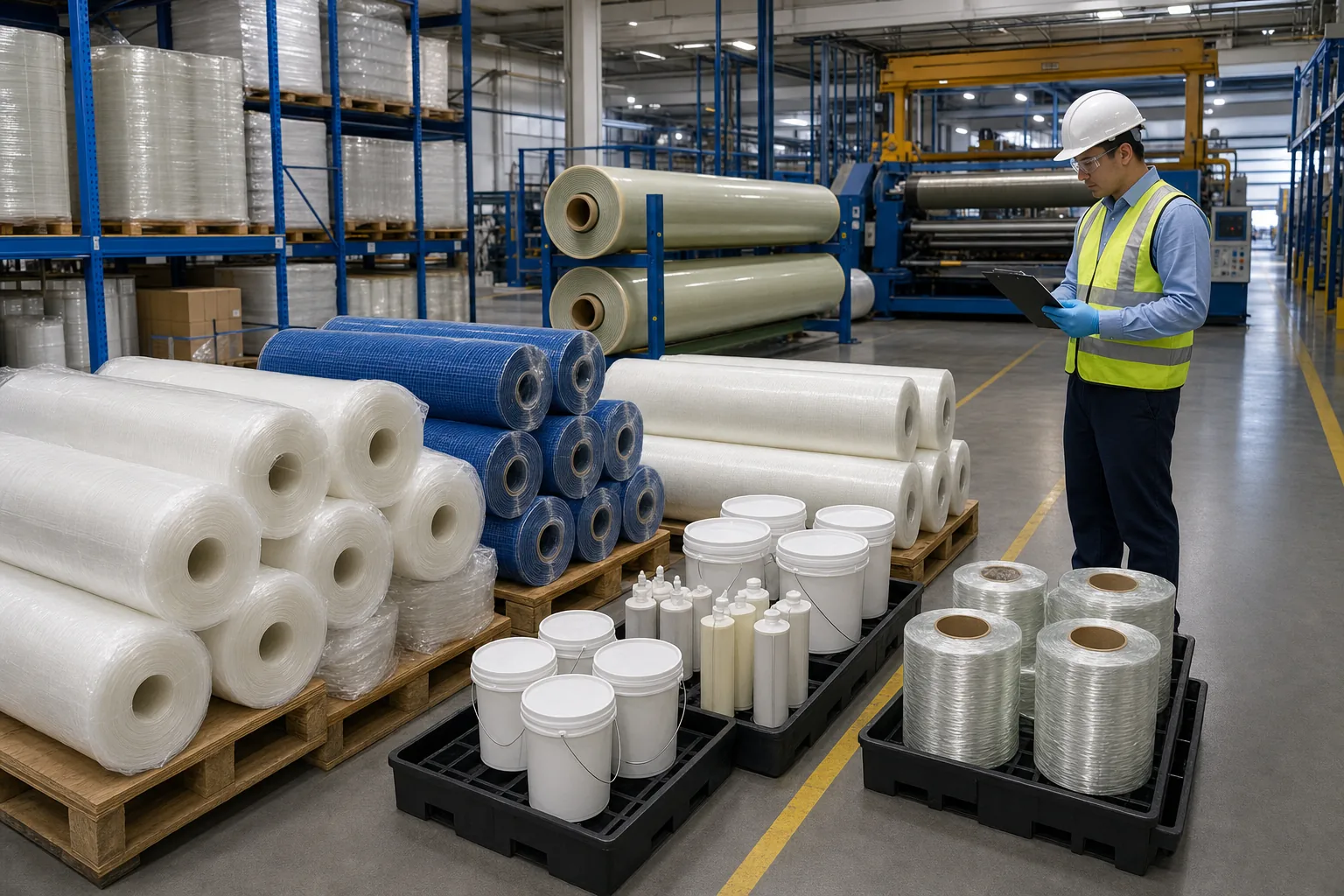

Materials, Components & Production Equipment
Everything an SWRO element manufacturer needs — not finished elements or desalination systems.
Inside the plantMaterials & Components
- Feed spacer & permeate carrier
- 8040 central tubes & connectors
- Brine seals & end caps
- PU / epoxy glue & tape
- Fiberglass roving & resin (FRP)
- SWRO flat sheet — on request
Production Equipment
- 8040 rolling machine
- Cutting & folding
- Ultrasonic welding
- Trimming & FRP winding
- Vacuum leak testing
- Performance testing
Planning Questions for SWRO Elements
What does WECOME supply for seawater reverse osmosis?
We supply the materials, components and production equipment used to manufacture SWRO elements — feed spacer, permeate carrier, robust central tubes, brine seals, end caps, glue, tape and fiberglass wrap, plus 8040 rolling, FRP winding and testing machines. Seawater-grade flat sheet membrane is available on request. We do not sell finished elements or desalination systems.
Which element size is used for seawater desalination?
8040 is the workhorse for large SWRO plants, with 4040 for smaller systems. We supply the components and machines for both.
How is a seawater element different from brackish?
Seawater runs at much higher salinity and pressure, so it needs high-rejection seawater membrane and a high-pressure build — stronger central tube, reliable seals and a strong FRP outer shell. See brackish water for the lower-pressure case.
Do you sell finished SWRO membrane elements or systems?
No. WECOME is an upstream supplier — materials, components and production equipment for element manufacturers. We do not sell finished SWRO elements or complete desalination systems.
Building SWRO elements for a desalination project?
Send your output target and element size — we’ll recommend the components and machines to build robust seawater elements, and send a quote.
