RO Membrane Materials for Boiler Feedwater Treatment
Boiler feedwater reverse osmosis is the demineralization pretreatment stage — RO takes out the bulk of the salt before ion exchange or EDI polish the water to boiler quality. WECOME supplies the high-rejection membrane materials, 8040 components and production equipment element manufacturers use to build boiler-feed RO elements.
RO Carries the Demineralization Load
Power plant boiler water treatment demands very low dissolved solids, hardness and silica. RO does the heavy lifting — removing most of the salt so the downstream ion exchange or EDI has far less to do, runs longer between regenerations and reaches boiler-feed quality. Stable, high salt rejection from every element is what makes that work.
Boiler-feed targets
Very low TDS, hardness and silica protect boilers from scale and corrosion.
RO before IX / EDI
RO removes the bulk of the salt so polishing reaches final quality efficiently.
Hardness & silica
High rejection and the right build keep hardness and silica under control.
Continuous duty
Power plants run around the clock — every element must hold rejection stably.
Where RO Sits in Boiler Feedwater Treatment
In RO for boiler feed water, the membrane stage sits after pre-treatment and softening and ahead of ion exchange or EDI. RO alone does not produce final boiler feedwater — it is the demineralization pretreatment that makes the polishing stage practical. The element is specified from the feed and the target ahead of polishing.
- Characterise the feedTDS, hardness and silica define the rejection the RO stage must deliver.
- Set the pre-polish targetHow much salt RO must remove before IX / EDI drives the membrane grade.
- Place RO in the trainPre-treatment protects the element; IX or EDI polishes to final boiler quality.
- Specify the elementHigh-rejection sheet, robust 8040 build, glue and FRP wrap for continuous duty.
- Plan production & QCConsistent 8040 rolling and rejection testing keep every element on spec.
Different Boiler Plants, Different Element Builds
Boiler-feed RO appears in several kinds of plant. Each points to a slightly different element build — but all share high rejection and continuous-duty reliability.
Demin Pretreatment
RO ahead of ion exchange or EDI, removing most of the salt so polishing runs longer between regenerations.
Power-Plant Make-up
High-purity make-up water for power-plant boilers — high-rejection 8040 elements on continuous duty.
Industrial Steam
Boiler feedwater for industrial steam and process heat, where stable rejection protects the boiler.
Six Material Decisions That Act as One Element
Boiler feedwater reverse osmosis depends on stable, high salt rejection element after element. Each material below is chosen for that duty, and they only perform when matched to each other.
Membrane Sheet
A high-rejection industrial flat sheet membrane that removes the bulk of the salt, hardness and silica ahead of polishing.

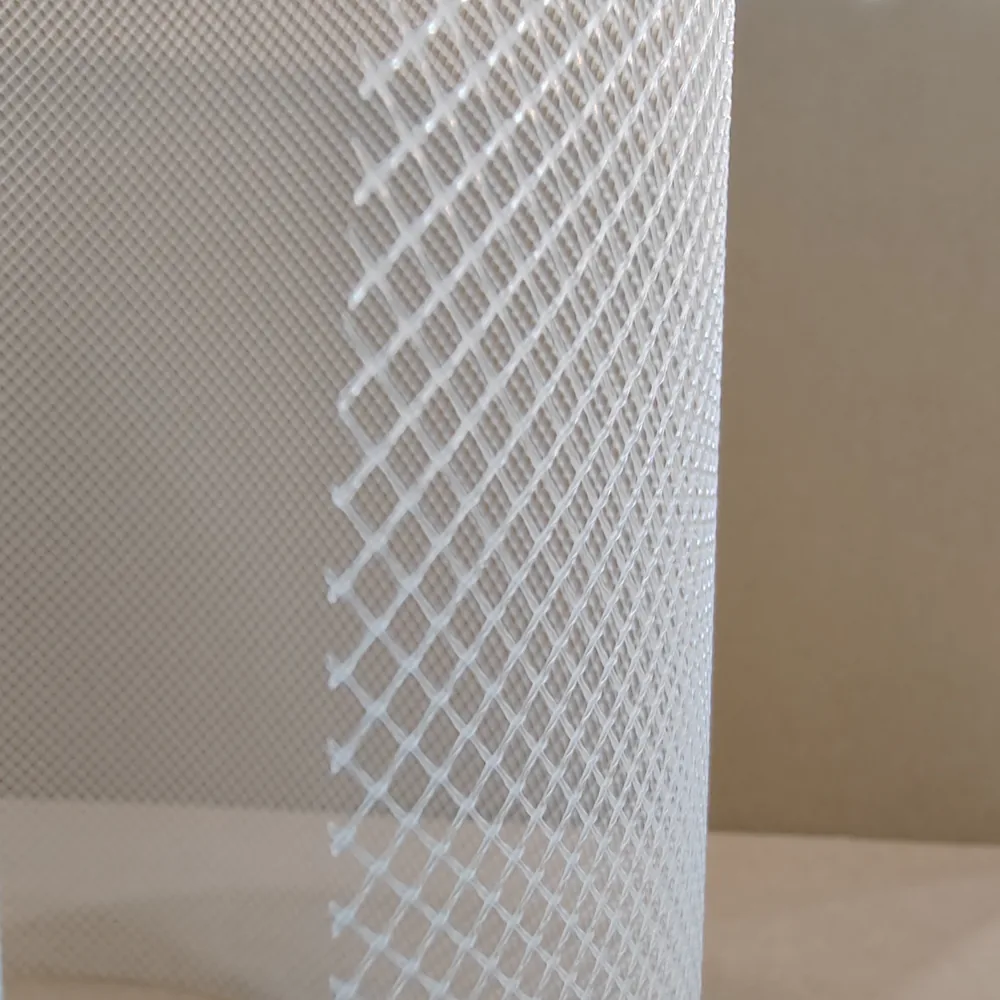

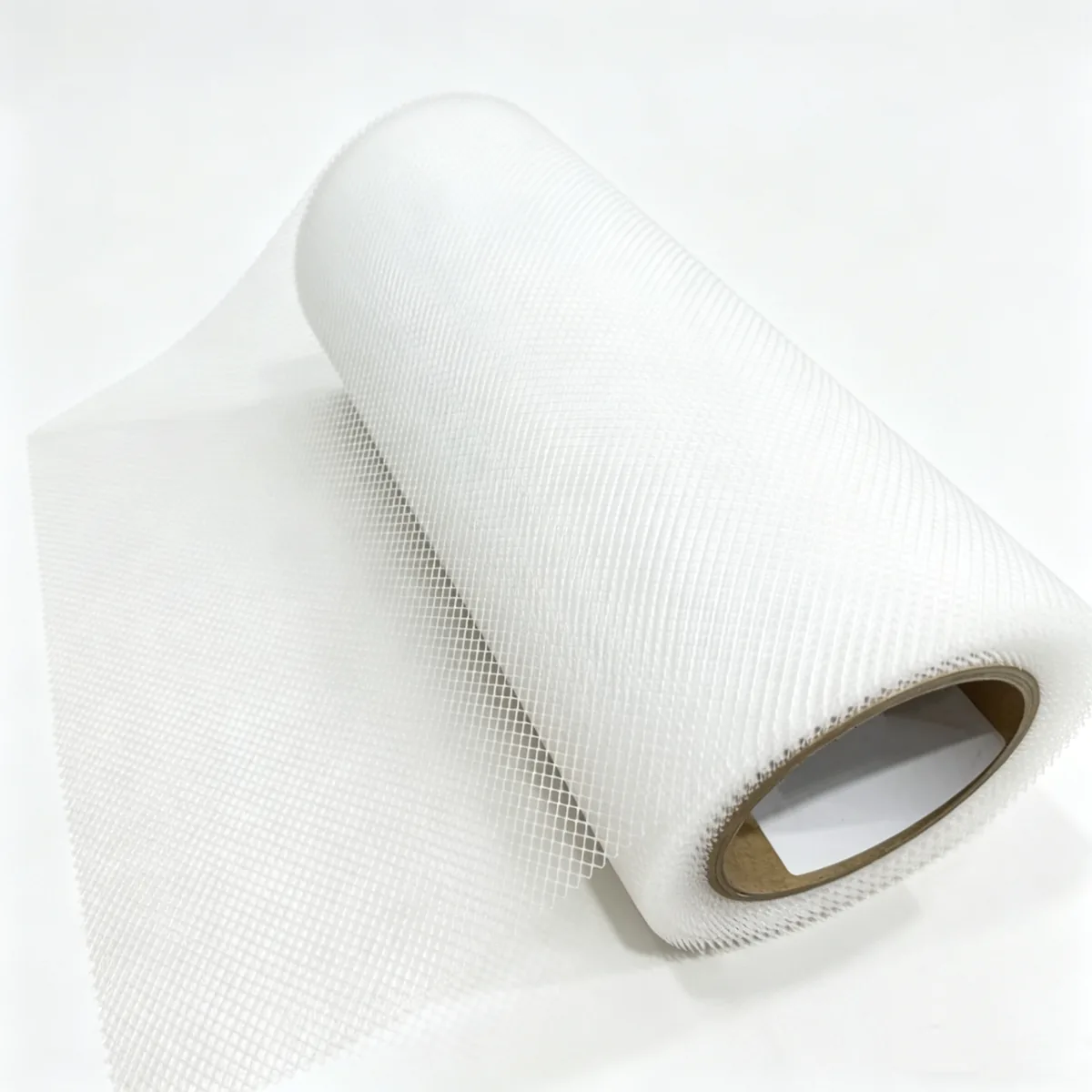

Feed Spacer
Feed spacer choice balances flux against scaling resistance on hardness- and silica-bearing feed.
Permeate Carrier
The permeate carrier carries product water with low back-pressure under continuous operation.
Central Tube
The central tube takes the pressure and flow of 8040 boiler-feed elements without distortion.
Adhesive & Wrap
The glue lines and fiberglass wrap hold integrity under continuous duty — leak integrity protects rejection.

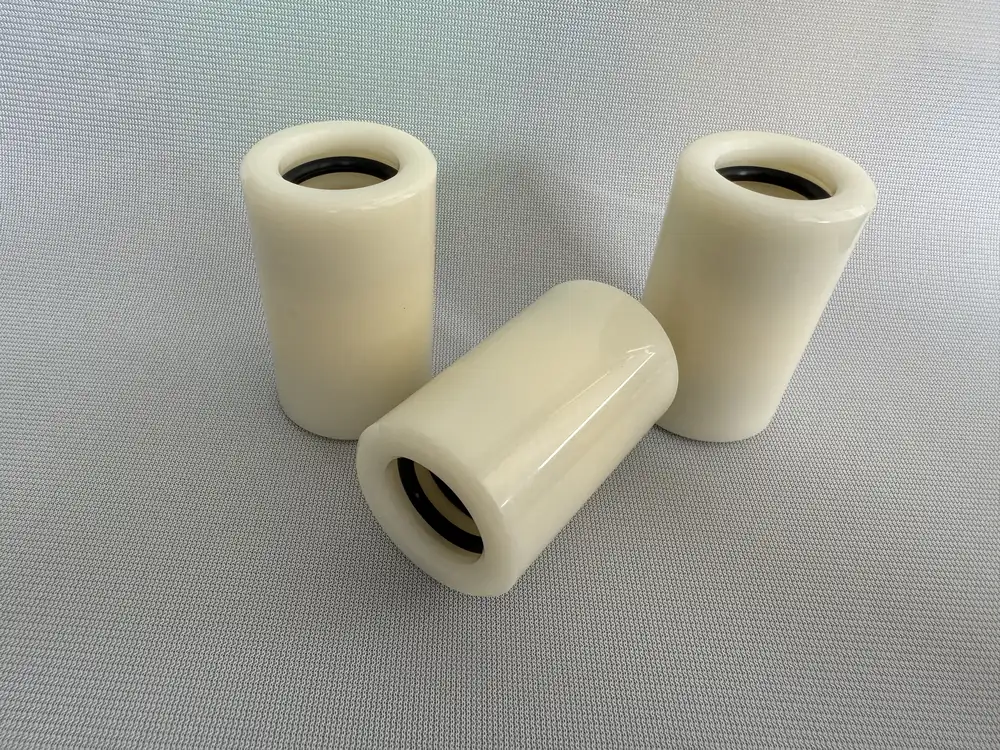

Seals & Parts
Brine seals, end caps and connectors keep feed flowing and joining cleanly in multi-element 8040 vessels.

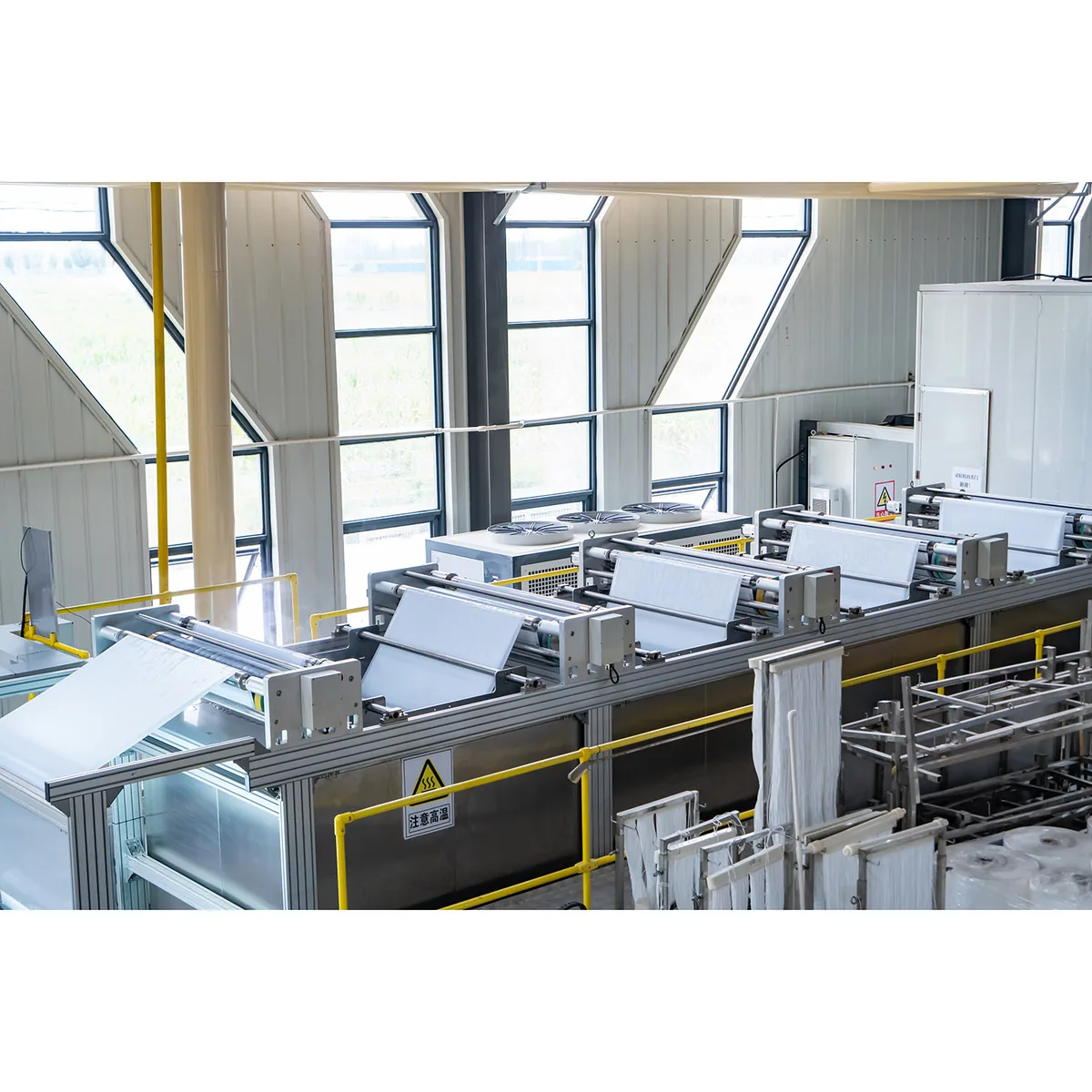

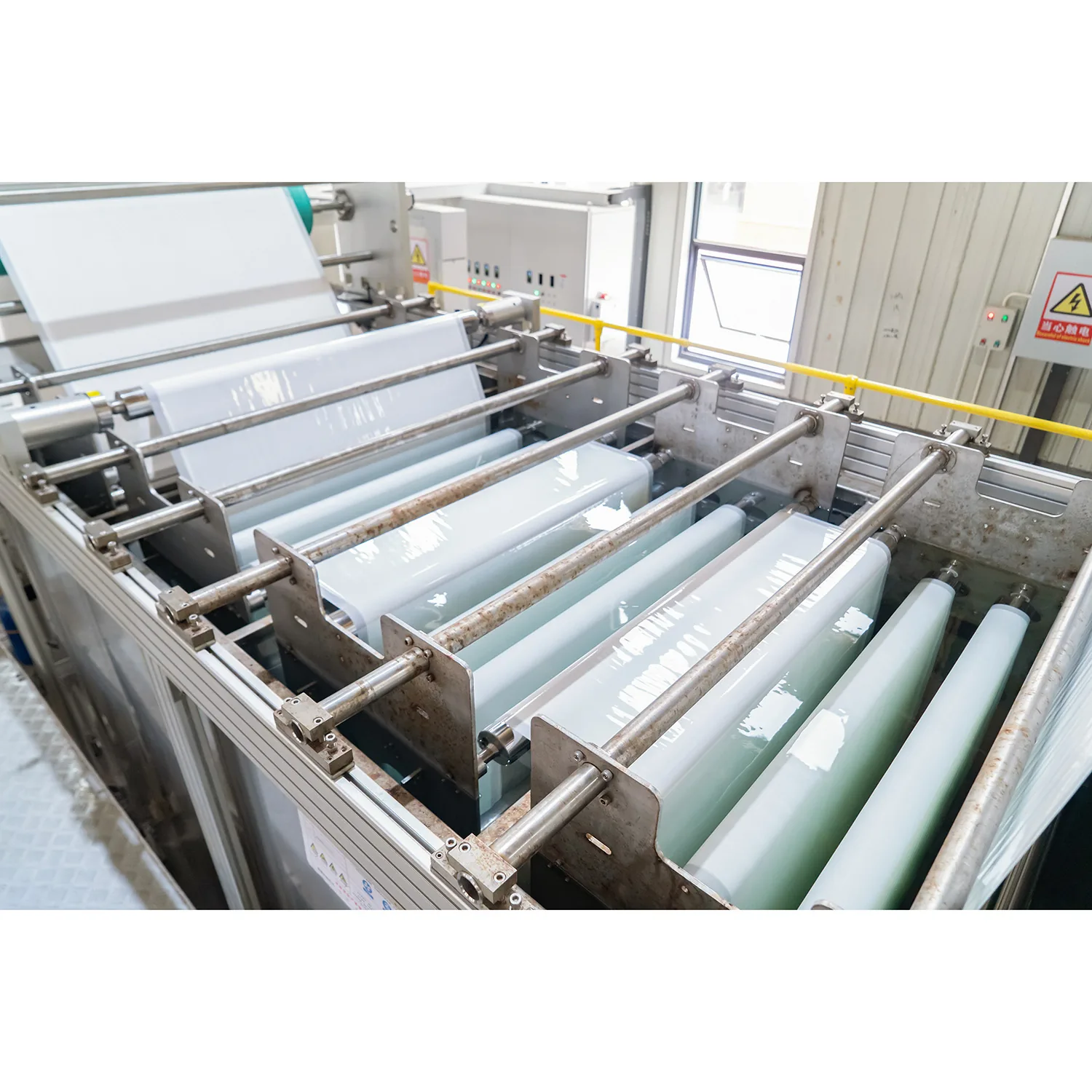

Stable Rejection Comes From Consistent Production
Boiler-feed programs order 8040 elements in volume, and every one has to hold the same rejection. Consistent production and rejection testing are as important as the membrane grade — and we supply the machines for it.
- Incoming material checks — verify high-rejection membrane, spacer and components before rolling.
- Controlled 8040 rolling — stable winding tension for repeatable roll quality.
- FRP outer winding — consistent fiberglass shell for continuous-duty elements.
- Rejection & leak testing — flow, rejection and vacuum checks on every element.
Specify High Rejection, Then Build It the Same Every Time
The safest boiler-feed programs start from the feed, the pre-polish target and a documented element specification — then hold rejection across every production run.
- Start from feed and target — hardness, silica and TDS decide the high-rejection grade.
- Set acceptance criteria — rejection, flow and leak limits agreed up front.
- 8040 format — matched to your array and output for power-plant volume.
- Serviceable, traceable construction — consistent parts that hold rejection over time.
Match Materials to Feed and Target
| Duty / stage | Typical challenge | Membrane | Build notes |
|---|---|---|---|
| Demin pretreatment | Bulk salt removal before IX/EDI | High-rejection industrial | 8040; robust tube & FRP wrap |
| Power-plant make-up | High volume, continuous | High-rejection sheet | Durable parts; tight QC |
| High-silica feed | Silica & hardness scaling | High-rejection sheet | Scaling-aware spacer |
| Industrial steam | Steady boiler protection | High-rejection sheet | Consistent rejection; 8040 |
Indicative only — the exact build is confirmed from your feed analysis and target. RO is the demineralization pretreatment, not the final boiler-feed polish. Size it with the element size reference.
Materials, Components & Production Equipment
Everything an RO element manufacturer needs to build boiler-feed RO elements — not finished systems, and not the final polishing stage.
Inside the plantMaterials & Components
- High-rejection industrial sheet
- Feed spacer & permeate carrier
- 8040 central tubes & connectors
- Brine seals & end caps
- PU / epoxy glue & tape
- Fiberglass outer wrap
Production Equipment
- 8040 rolling machine
- Cutting & folding
- Ultrasonic welding
- FRP winding
- Rejection & leak testing
- Performance testing
Planning Questions for Boiler-Feed RO Elements
What does WECOME supply for boiler feedwater reverse osmosis?
We supply the RO membrane materials, components and production equipment used to manufacture boiler-feed RO elements — high-rejection industrial flat sheet membrane, feed spacer, permeate carrier, 8040 central tubes, brine seals, end caps, glue, tape and fiberglass wrap, plus 8040 rolling, FRP winding and rejection / leak testing machines. We do not sell finished elements or complete RO systems.
Does RO produce final boiler feedwater on its own?
No. RO is the demineralization pretreatment — it removes the bulk of the salt so ion exchange or EDI can polish the water to final boiler-feed quality efficiently. The final quality comes from the whole train, not RO alone.
Which element size is used for boiler-feed RO?
8040 is the standard for power-plant and industrial boiler-feed volume. We supply the materials and machines to produce 8040 elements and help match the high-rejection grade to your feed and pre-polish target.
How do you handle hardness and silica?
Through a high-rejection membrane and scaling-aware feed spacer, combined with upstream softening / anti-scalant in the train. We match the membrane and spacer to your feed analysis.
Do you provide production and QC support?
Yes. We supply the 8040 rolling, FRP winding and rejection / leak testing equipment and advise on incoming checks, rolling consistency and testing so every element holds its rejection.
Building RO elements for boiler feedwater?
Send your feed analysis, pre-polish target and element size — we’ll recommend the high-rejection membrane, 8040 components and machines to build dependable boiler-feed RO elements, and send a quote.
